GB / T 699 Grade 8 Steel
GB / T 699 Grade 8 Steel
Grade 8 Steel is a common carbon steel in China.
Standard: GB / T 699
Grade: Grade 8
Features and scope of Grade 8 Steel:
It is an extremely soft carbon steel, with low strength and hardness, and extremely high toughness and plasticity. It has good cold workability, welding performance such as deep drawing, drawing, bending and upsetting. However, there is aging sensitivity, and the hardenability and hardenability are extremely low.
application

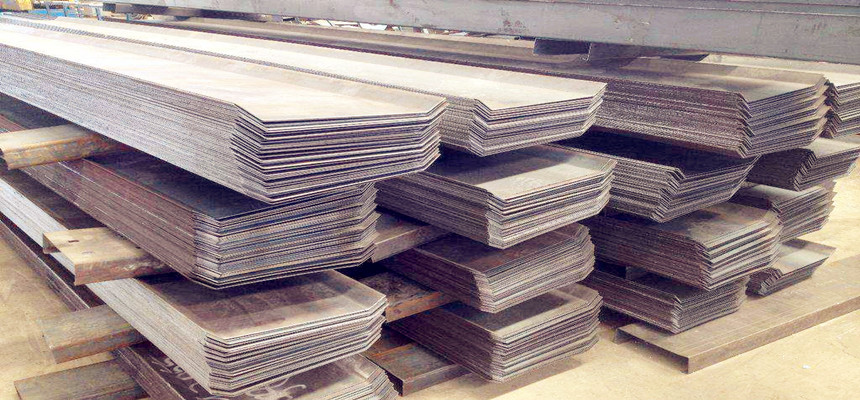

Grade 8 Steel is mostly rolled into high-precision thin plates or cold-rolled steel strips to produce easy-to-machine, low-strength deep-drawn or deep-drawn covering parts and welded components.
GB / T 699 Grade 8 Steel Chemical composition
GB / T 699 Grade 8 Steel Mechanical properties
GB / T 699 Grade 8 Steel Heat treatment: normalizing 930 ℃, 45min, air cooling.
Metallographic structure: ferrite + very small amount of pearlite.
GB / T 699 Grade 8 Steel Delivery status:
Delivery without heat treatment or heat treatment (annealing, normalizing or high temperature tempering). If the delivery is required in the heat treatment state, it shall be specified in the contract. If it is not specified, the delivery shall be made without heat treatment.
Grade 8 Steel is a common carbon steel in China.
Standard: GB / T 699
Grade: Grade 8
Features and scope of Grade 8 Steel:
It is an extremely soft carbon steel, with low strength and hardness, and extremely high toughness and plasticity. It has good cold workability, welding performance such as deep drawing, drawing, bending and upsetting. However, there is aging sensitivity, and the hardenability and hardenability are extremely low.
application
Grade 8 Steel is mostly rolled into high-precision thin plates or cold-rolled steel strips to produce easy-to-machine, low-strength deep-drawn or deep-drawn covering parts and welded components.
GB / T 699 Grade 8 Steel Chemical composition
| Grade | Chemical composition(%) | |||||||
| C | Si | Mn | S | P | Cr | Ni | Cu | |
| Grade 8 Steel | 0.05～0.12 | 0.17～0.37 | 0.35～0.65 | ≤0.035 | ≤0.035 | ≤0.10 | ≤0.25 | ≤0.25 |
GB / T 699 Grade 8 Steel Mechanical properties
| Grade | Mechanical properties | ||||
| Tensile strength(MPa) | Yield strength (MPa) | Elongation (%) | Section shrinkage (%) | Hardness | |
| Grade 8 Steel | ≥325 | ≥195 | ≥33 | ≥60 | ≤131HB |
GB / T 699 Grade 8 Steel Heat treatment: normalizing 930 ℃, 45min, air cooling.
Metallographic structure: ferrite + very small amount of pearlite.
GB / T 699 Grade 8 Steel Delivery status:
Delivery without heat treatment or heat treatment (annealing, normalizing or high temperature tempering). If the delivery is required in the heat treatment state, it shall be specified in the contract. If it is not specified, the delivery shall be made without heat treatment.
