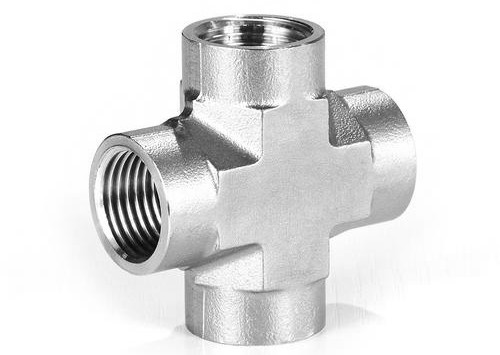

Female thread cross
Female thread cross
Product type: threaded pipe fittings
Place of Origin: Cangzhou Best Pipeline Co., Ltd.
Product description:
Product content of stainless steel threaded pipe fittings:
standard: ASME, B16.11, MSSSP-75, JIS2316, GB/T14383, GB/T14626, SH3410, HG/T21634, etc.
Material: forged steel A105, 20#, 1cr5mo, 304 , F11, F22 , F5, stainless steel (TP321, TP304, TP304L, TP316, TP316L), chromium-molybdenum steel (15CrMo, 12Cr1MoV).
Nominal diameter: 1/8"-4"
Nominal pressure: PN40KG, 64KG, 100KG, 160KG, 250KG, 320KG.
Applicable medium: water, steam, petroleum, etc.
Connection form: socket welding connection, threaded connection.
Threaded cross is a kind of industrial pipe fittings, its main function is to shunt the passing medium.
The threaded cross is divided into forging and casting in the manufacturing process. Forging refers to heating and forging with steel ingots or round bars, which is formed after processing the thread on the lathe. Casting refers to melting the steel ingot and pouring it into the cross. After the model is cooled, it is made after cooling.
Because the manufacturing process is different, the magnitude of its pressure is also different. The pressure resistance of forging is much higher than that of casting.
